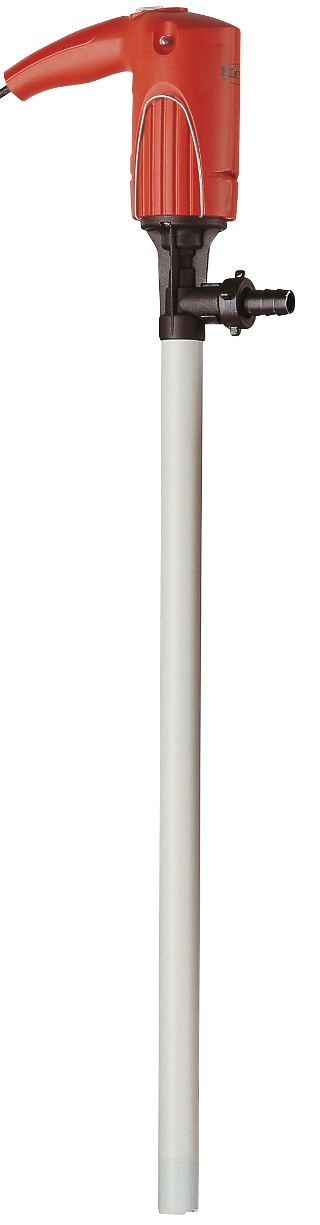

F314 Sealless Pump

  • Ability to run dry
  • No wearing of mechanical seals
  • Process liquid cannot be contaminated by lubricant
  • Inner tube and helix shaped support bearing are self-draining
  • Flows to 15 GPM
  • Heads to 28 feet
  • Viscosities to 250 cPs
  • Temperatures to 176 Degrees F
  • IP24 Splash-proof, 50-60 Hz, 2 speed motor available in 110V, 230V & 240V
  • Also available in variable speed lithium-ion battery motor

Materials of Construction
Polypropylene Constructed:
  • Housing: Polypropylene
  • Drive Shaft: Hastelloy C
  • Impeller: ETFE
  • Lip Seal: Viton
  • O-Ring: Viton
  • Guide Bearing: Carbon
  • Bearing Housing: Carbon
  • Outlet Gasket: Polyethylene
Stainless Steel Constructed:
  • Housing: 316Ti Stainless Steel
  • Drive Shaft: 316Ti Stainless Steel
  • Impeller: ETFE
  • Lip Seal: Viton
  • O-Ring: Viton
  • Guide Bearing: Carbon
  • Bearing Housing: Carbon
  • Outlet Gasket: Polyethylene
PVDF Constructed:
  • Housing: PVDF
  • Drive Shaft: Hastelloy C
  • Impeller: ETFE
  • Lip Seal: Viton
  • O-Ring: Viton
  • Guide Bearing: Carbon
  • Bearing Housing: Carbon
  • Outlet Gasket: Polyethylene

Dimensional Drawings

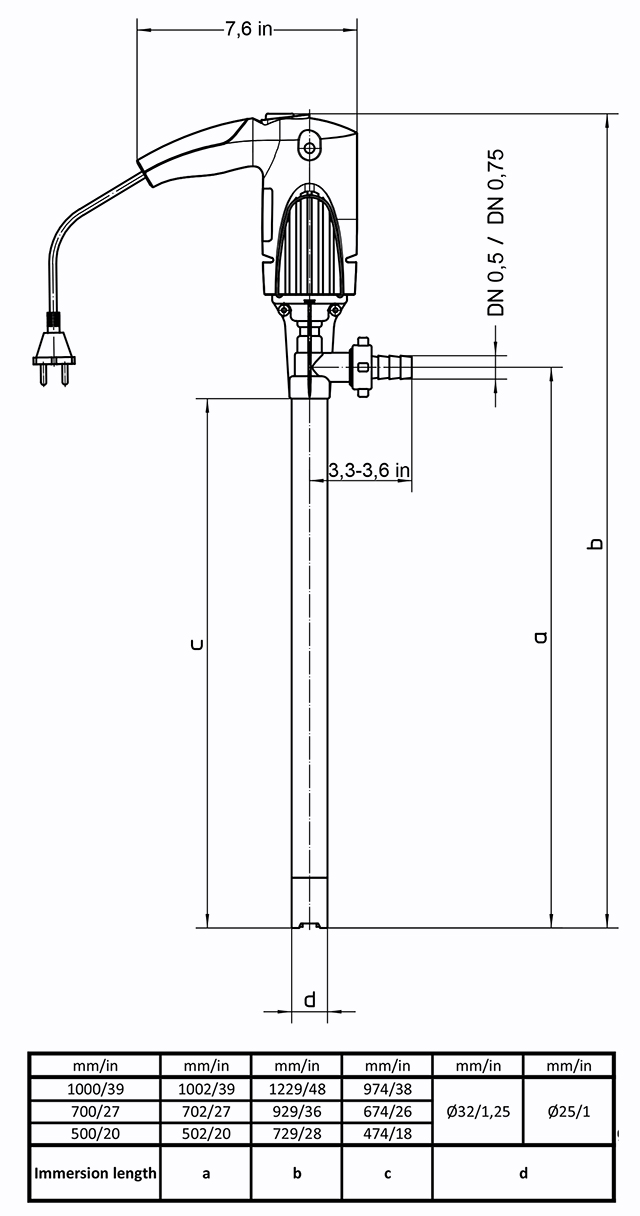

F314 PP/PVDF

314-Plastic-Dimensions

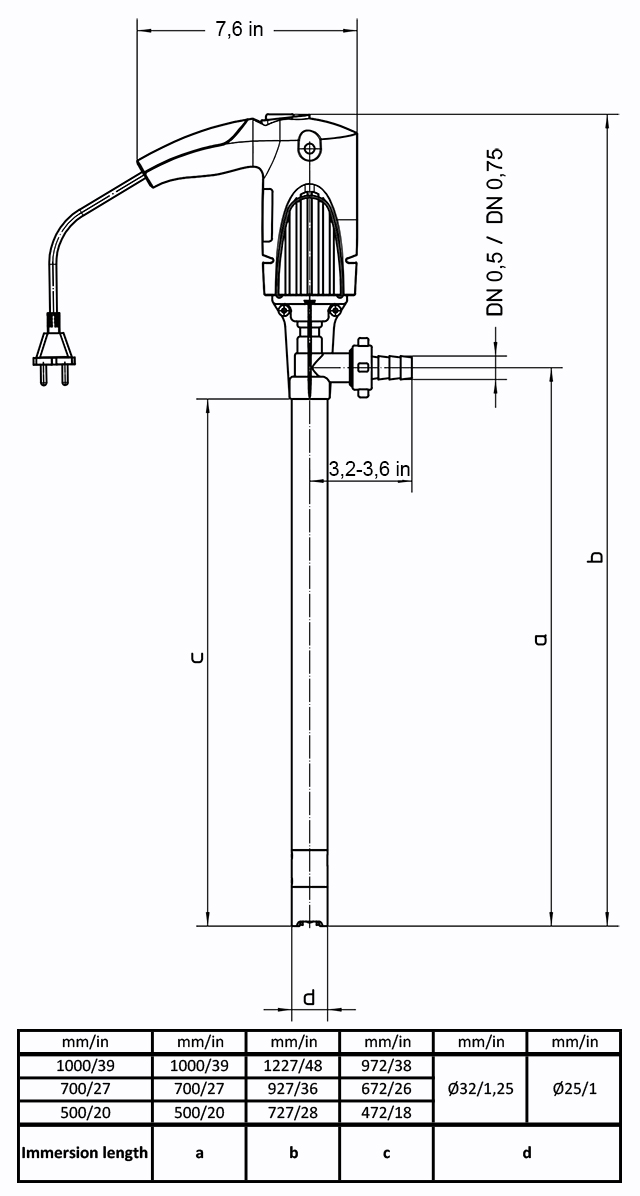

F314 S

314-Stainless Steel-Dimensions

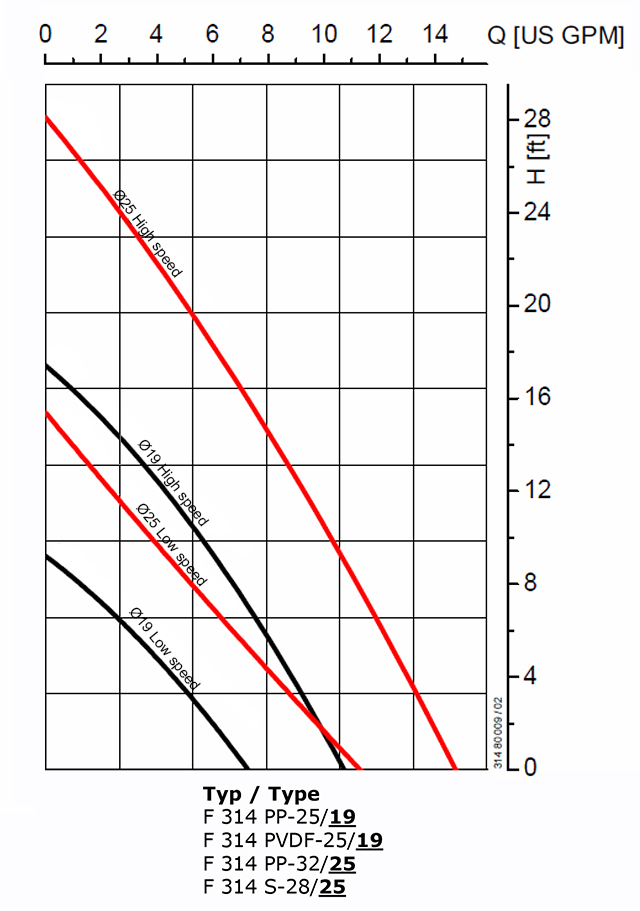

Performance Curves

F314 PP/PVDF

F314
