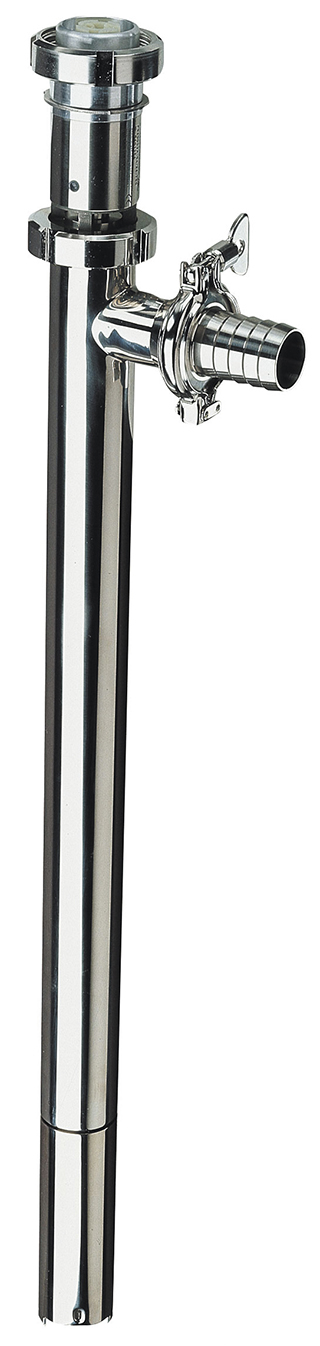

F560 GS3A

  • Smooth, pulsation free flow handles product gently
  • Simple to clean and disassemble
  • Heavy duty yet light weight
  • Low shear and extremely quiet
  • Suitable for use in the food & beverage, personal care, cosmetic and pharmaceutical industries
  • 3A Approved and FDA compliant versions
  • 2" Tri-clamp connection
  • Vertical and horizontal configurations available
  • Lengths to 60"
  • Flows to 12 GPM
  • Viscosities to 100,000 cPs
  • Pressures to 118 PSIG

Enlarge
Materials of Construction

Stainless Steel Constructed:

  • Housing: 316Ti Stainless Steel
  • Drive Shaft: 316Ti Stainless Steel
  • Rotor: 316Ti Stainless Steel
  • Stator: PTFE - Options: NBR and FKM
  • O-ring: FKM
  • Mechanical Seal: Ceramic Oxide/Silicon Carbide/FKM

Dimensional Drawings

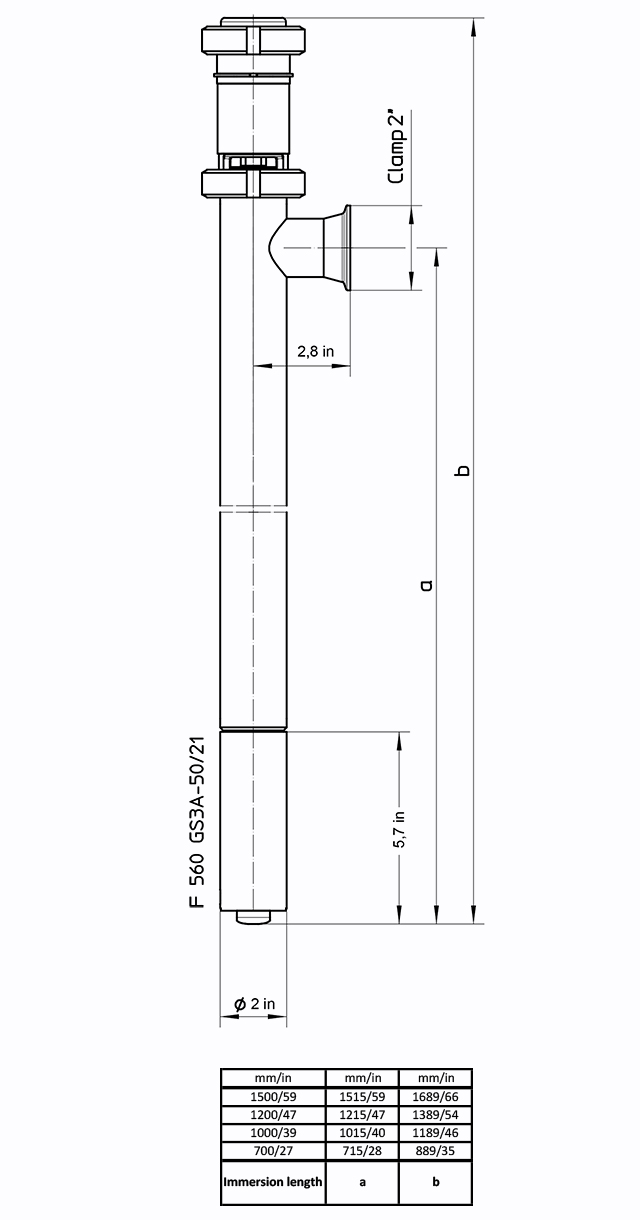

F560 GS3A S 50mm

560-GS3A-S-50-Dimensions

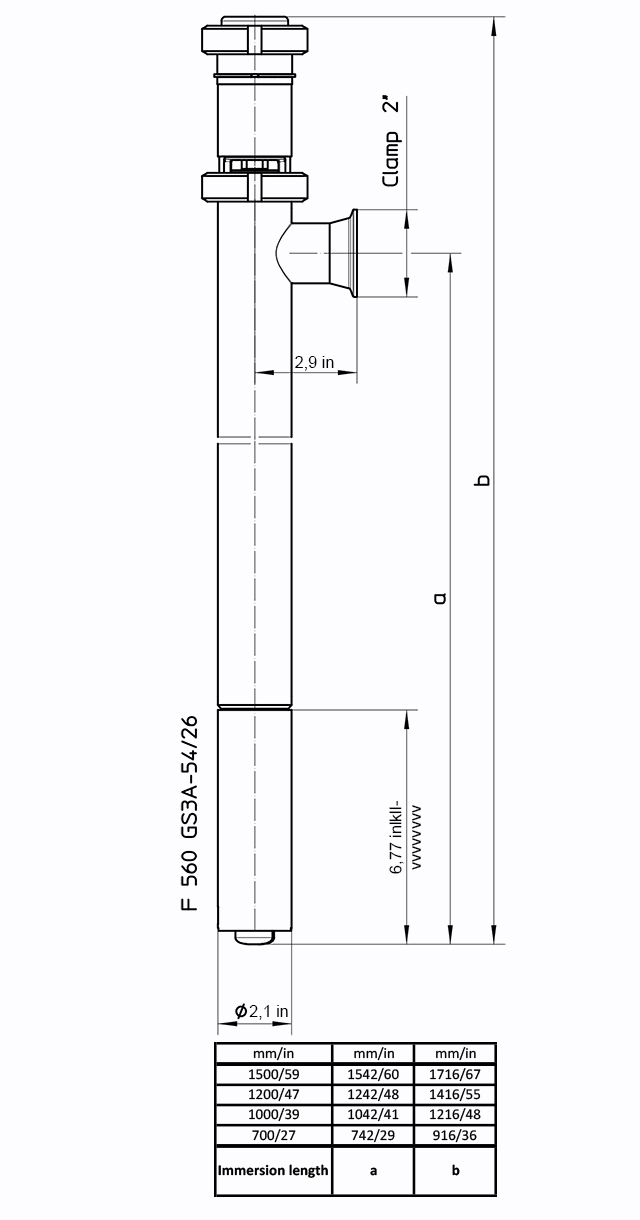

F560 GS3A S 54mm

560-GS3A-S-54-Dimensions

Performance Curves

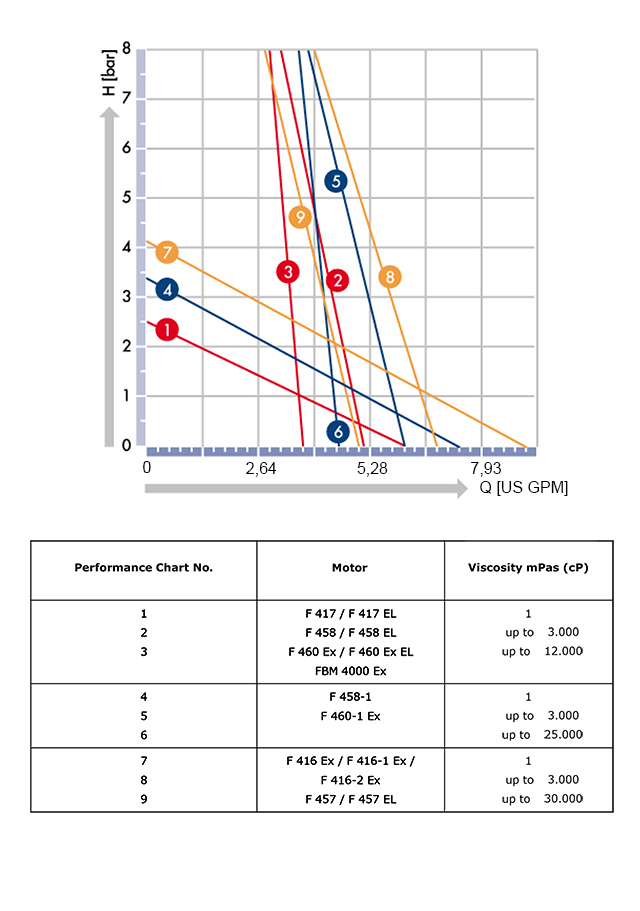

F560 GS3A 50 S*

F560 GS3A 50 S

F560 GS3A 54 S*

F560 GS3A 54 S

* The maximum viscosity for the F560 GS pumps is up to 50,000 cPs / Consult factory
